P0504 code — how to fix error fast

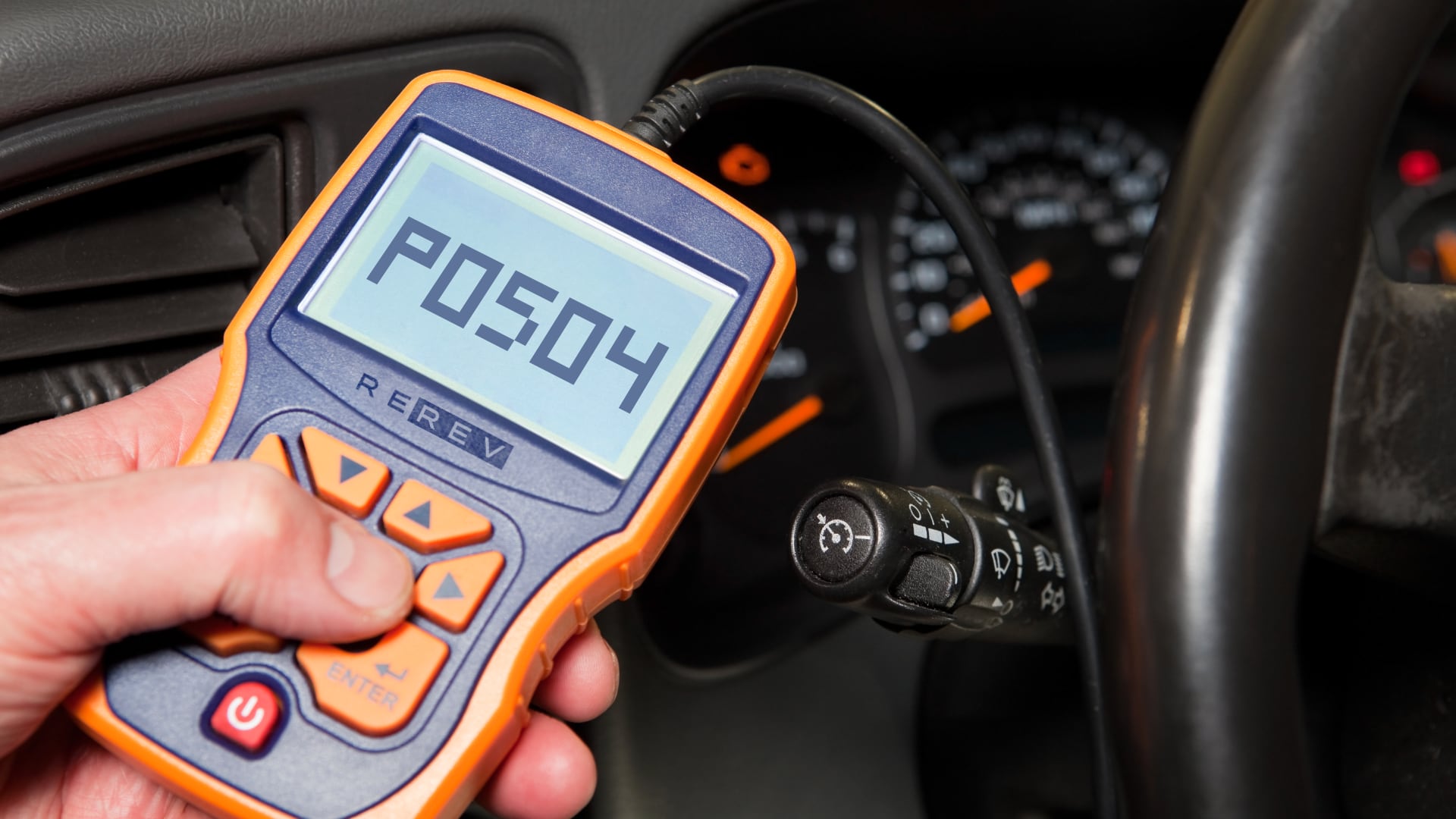

If the code P0504 comes up on a diagnostic scanner tool along with the “check engine” light on the board, things could escalate to a real problem quickly. This code is related to the combustion process of your car’s engine, so there’s no point in discussing how serious it is.

You’ll need to take instant action if your car has an issue with this code, so this guide on P0504 code meaning and ways of fixing it should do the trick. We’ll be there to guide you on every step of the road, from diagnosing the code to fixing it and hopefully preventing it from happening again.

Why you can trust REREV’s OBD2 code advice: Our automotive expert researchers with experienced mechanics undertakes a thorough research methodology to deliver precise insights on OBD codes. Find out more about OBD2 codes research process..

What does the P0504 code mean?

The P0504 code is related to the vehicle’s speed control system. It indicates that the engine control module (ECM) has detected an abnormality in the circuit that controls the vehicle’s idle air control (IAC) system. The IAC system is responsible for regulating the amount of air that enters the engine when the throttle is closed. When the ECM detects a fault in this system, it triggers the P0504 code and illuminates the check engine light.

Understanding the P0504 code is important because it can affect the drivability of your vehicle. If you don’t immediately fix the code, it could lead to possible issues with your engine and your car stalling. So, let’s get straight into the main reasons behind it to help you build your way to the solution.

What causes the P0504 code?

There are several key reasons that may be behind this code, so the most important thing to do here is to be 100% sure about the exact cause. We’ve scanned all sorts of driver reports and complaints about the code and our experience with that combined tells us that these are the possible suspects:

Faulty idle air control valve

The idle air control valve is responsible for regulating the amount of air that enters the engine when the throttle is closed. If this valve is faulty, it can cause the P0504 code to appear. Symptoms of a faulty idle air control valve include erratic idle speed, stalling, and poor fuel economy.

Dirty throttle body

A dirty throttle body can cause airflow issues, which can lead to the P0504 code. Symptoms of a dirty throttle body include rough idle, poor acceleration, and stalling.

Wiring issues

The wiring that connects the IAC valve and ECM can become damaged or corroded over time, leading to the P0504 code. Symptoms of wiring issues include intermittent stalling, rough idle, and poor performance.

Failed ECM

While rare, a failed ECM can cause the P0504 code to appear. Symptoms of a failed ECM include stalling, poor acceleration, and a check engine light that won’t go away.

Which car models does the P0504 code affect the most?

While the code P0504 can appear in almost every vehicle, some models are more prone to the P0504 code because they have a high number of idle air control valve failures. We decided to go through the NHTSA complaints to figure out which cars have a higher chance of being affected by the code. here’s what we found out:

• Honda Civic: The Civic is known for its fuel efficiency and reliability, but some models have had issues with the idle control system. The P0504 code has been reported in various Civic models from 2001 to 2016.
• Toyota Corolla: The Corolla is one of the best-selling cars in the world, but it may experience problems with the idle control system in some cases. The P0504 code has been reported in various Corolla models from 2003 to 2018.
• Ford F-150: Another car that may face this issue more commonly than others is the F-150, one of the most popular pickups on the market. It may experience issues with the idle control system due to its complex engine design. The P0504 code has been reported in various F-150 models from 2005 to 2016.

How to diagnose the P0504 code

As we mentioned, the code P0504 has quite a few possible reasons behind it and you can’t fix it for good unless you deal with the root cause of the code. Here are some steps you can take as advised by our team to pinpoint the exact issue behind it:

Check the IAC valve

The first step is to check the idle air control valve. Start by disconnecting the valve and measuring its resistance with a multimeter. If the resistance is out of spec, you will need to replace the valve.

Check the wiring

Next, check the wiring that connects the IAC valve and ECM. Look for any damage or corrosion and repair or replace the wiring as needed.

Check the throttle body

If the IAC valve and wiring are in good condition, the next step is to check the throttle body. Remove the throttle body and clean it thoroughly with a throttle body cleaner.

Check the ECM

If all else fails, you may need to check the ECM. This requires specialized diagnostic equipment and should be performed by a professional mechanic.

How to fix the P0504 code

Fixing the P0504 code depends on the underlying cause. Once you are completely sure that you’ve properly diagnosed the code and have found the source of the issue, here are some of the main steps for fixing it:

Replace the IAC valve

If the IAC valve is faulty, you will need to replace it. The cost of a new valve can range from $50 to $200, depending on the make and model of your vehicle.

Clean the throttle body

If the throttle body is dirty, cleaning it with a throttle body cleaner can solve the problem. Throttle body cleaner is inexpensive and can be purchased at any auto parts store.

Repair or replace the wiring

If the wiring is damaged or corroded, you will need to repair or replace it. This can be a time-consuming and expensive process, depending on the extent of the damage.

Replace the ECM

If the ECM is faulty, you will need to replace it. This is a costly repair that can cost upwards of $1000 and often more depending on the vehicle you own. However, we suggest you leave this one for the last and inspect all the other possible causes before it to avoid unnecessarily paying for an expensive replacement.

How to prevent the P0504 code

Preventing the P0504 code involves proper maintenance of your vehicle’s idle air control system. Here are some tips to help prevent the code from appearing:

• Perform routine maintenance on your vehicle, including regular oil changes, air filter replacements, and spark plug replacements.
• Avoid driving in dirty or dusty conditions, as this can cause the throttle body to become dirty.
• Use high-quality fuel to keep your engine running smoothly.
• If you notice any symptoms of the P0504 code, such as rough idle or stalling, have your vehicle inspected by a professional mechanic.

We know how frustrating it is to deal with such a code, so it’s easier to simply avoid having to deal with it again by applying the mentioned preventive measures.

Our take

Since the code P0504 can be a pretty serious one, it’s better to always counter it with proper steps for fixing it in the long run. It can help save your engine even after the initial symptoms of the code appear, so we hope this guide was sufficient to help you figure it out.

Of course, you should rely on a trusted mechanic for the repairs, but it’s at least a good thing to figure out what’s the cause on your own.
